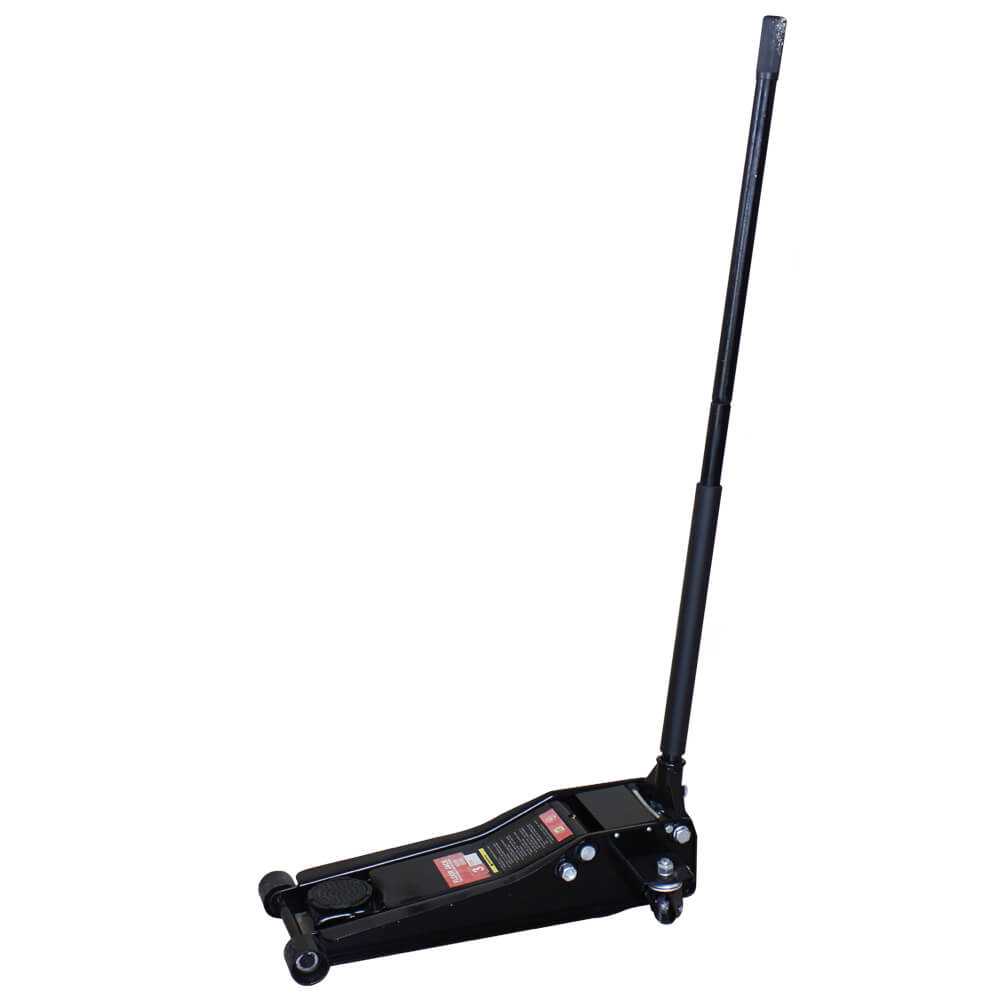

Cricco a carrello a doppio pistone 3T/5T

Double-piston carriage ratchet with robust rubber plate
to better protect the vehicle

Product code: N.A. Categories ,
Add to favourites
info Add products to your 'favourites' list and request a no-obligation quote
05.084.26_05.084.02L (1)
05.084.26_05.084.02L (2)
05.084.26_05.084.02L

main features

Double-piston carriage ratchet, with sturdy rubber plate for optimum protection of the vehicle. Available in two versions, with maximum flow rate of 5 tonnes or 3 tonnes.



Technical specifications - code 05.084.26

  • Load capacity: 5,000 kg
  • Min. height: 100 mm
  • Altezza max: 520 mm
  • Robust rubber plate to better protect the vehicle
  • Dimensions: 710 x 310 x 235 mm
  • Peso netto/lordo: 39/45 Kg

Technical specifications - code 05.084.02L

  • Load capacity: 3,000 kg
  • Altezza min: 75 mm
  • Altezza max: 500 mm
  • Robust rubber plate to better protect the vehicle
  • Dimensions: 640 x 342 x 174 mm
  • Peso netto/lordo: 32/34 Kg
