Extractor 2000

Wheeled gas extractor for cars, vans, trucks

Product code: 03.032.01 Categories ,

main features

Wheeled gas aspirator for cars, vans, trucks, available in 2 versions:

  • single pipe (cod. 03.032.01)
  • a double pipefor sports cars and motorbikes with dual exhaust (Code 03.032.12)

Technical specifications:

  • suction capacity: 2000 mc/h;
  • motor power: 1.1 KW;
  • maximum height (from the centre of the nozzle): 650 mm;
  • minimum height (from the centre of the nozzle): 350 mm;
  • Nozzle Ø: 235 mm;
  • Gas pipe Ø: 152 mm;
  • hose length: 10 m
  • max. hose temperature: 150° C
  • available in two-pipe version (A)for sports cars and motorbikes equipped with dual exhausts
(A) code 03.032.03 - Two-pipe suction kit with support (plug detail)

Accessories on request:

  • code 03.032.04 - Anti-crushing tube 200 °C
    for power test benches (10 m)
  • cod. 03.032.05 - Rubber nozzle Ø10/40 mm,
    with connection for gas analysis

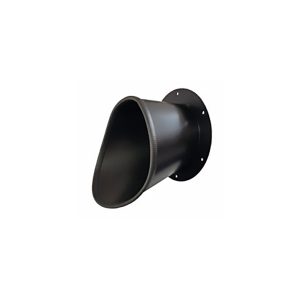

  • code 03.032.06 - Universal steel nozzle
    for cars, vans, trucks
  • Code 03.032.07 - Y-adapter
  • cod. 03.032.08 - Base + support for Y-shaped suction kit
  • code 03.032.09 - Heat-resistant tube L = 1.5 m, Ø 120 mm
  • code 03.032.10 - Heat-resistant tube L = 3 m, Ø 120 mm
  • code 03.032.11 - Hose Ø 152 for EXTRACTOR 2000
