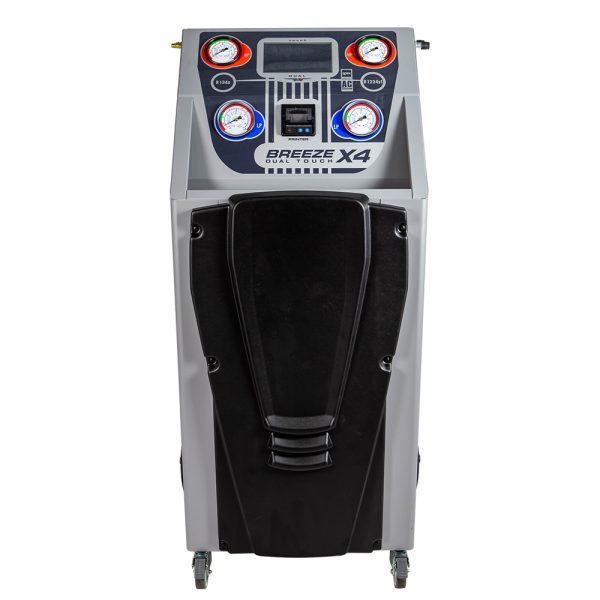

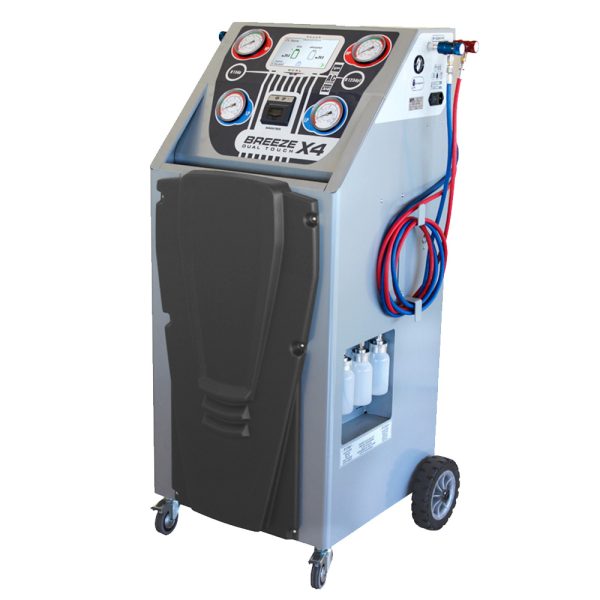

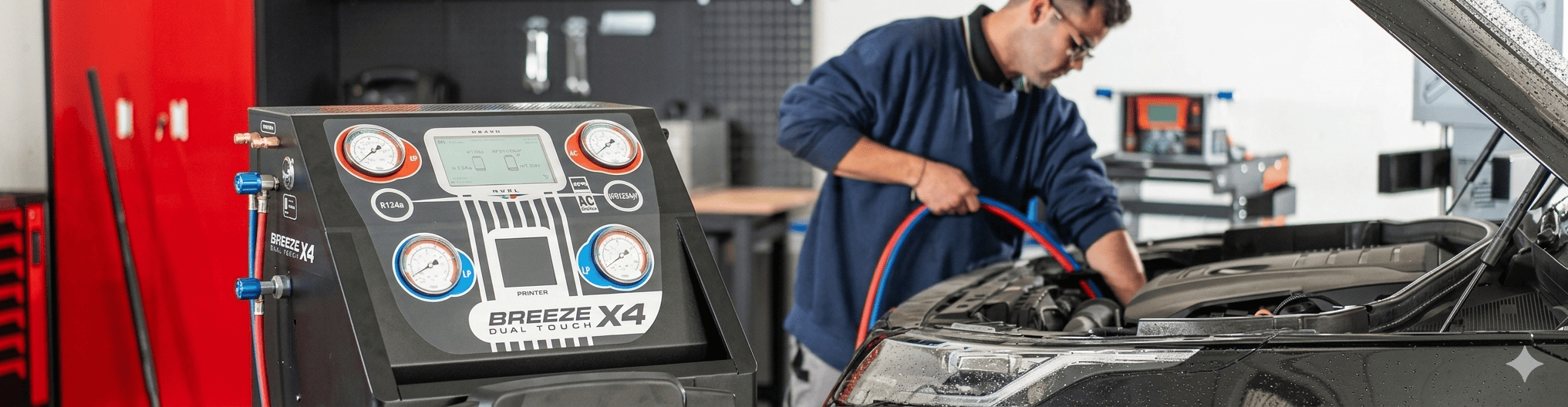

Breeze X4 Dual Touch

Fully automatic bi-gas A/C station, R134a and R1234yf,
for cars, trucks and agricultural machinery

Details that make a difference

Double gas, best value for money on the market

7" touch-screen display for clear, fast and intuitive navigation

Ready-to-use when switching from one gas to another thanks to 4 dedicated pipes (2+2)

Working cycle with automatic taps as standard

Functions automatically managed by the software, for maximum working precision

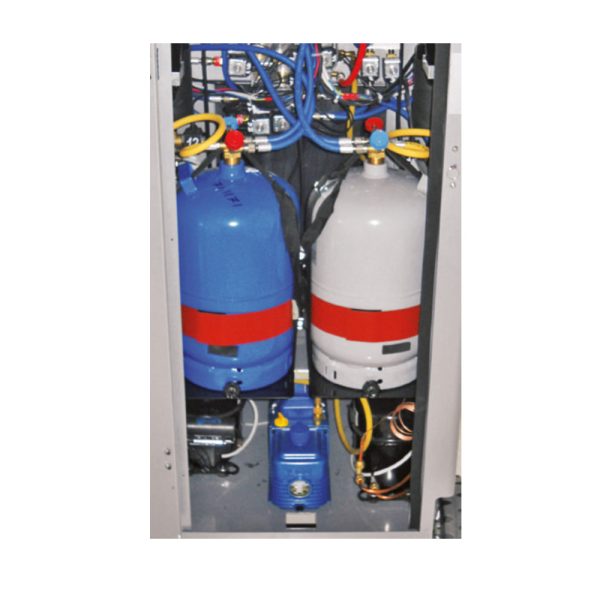

Double tank with dual scales and switching times from one gas to another < 10 min

Product code: 01.001.44 Air conditioning, Breeze Line, SPIN, Air conditioning stations

Features

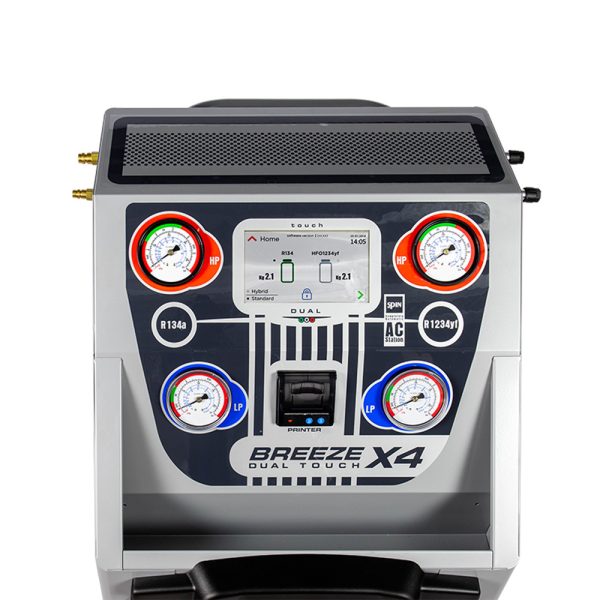

Easy human-machine interface thanks to 7" touch screen and icon-based software (A)

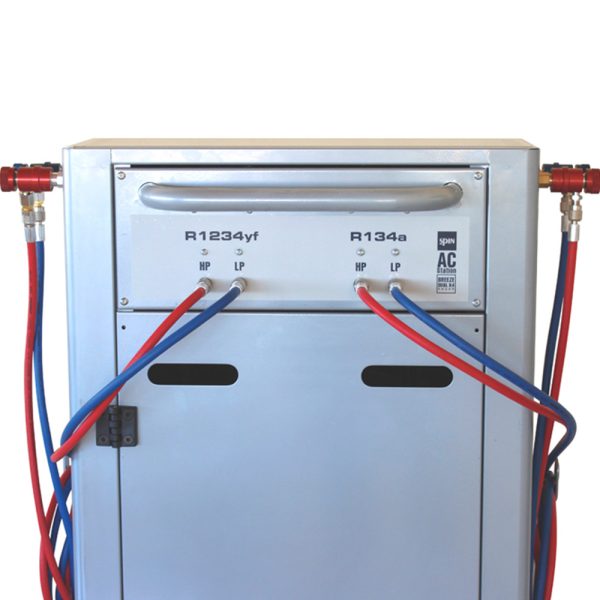

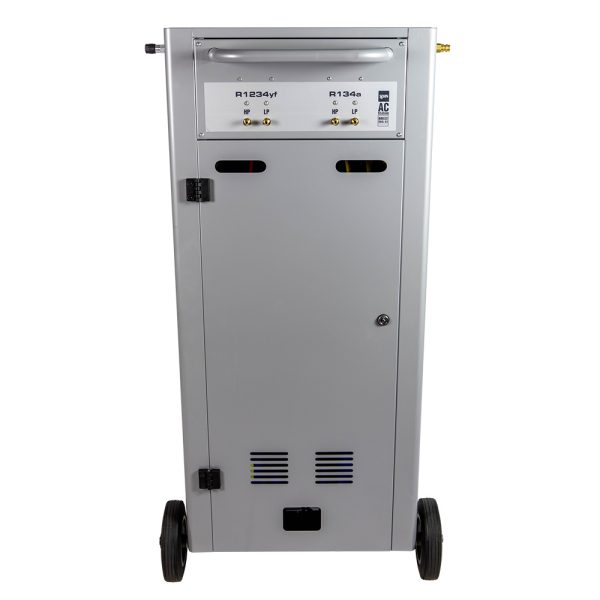

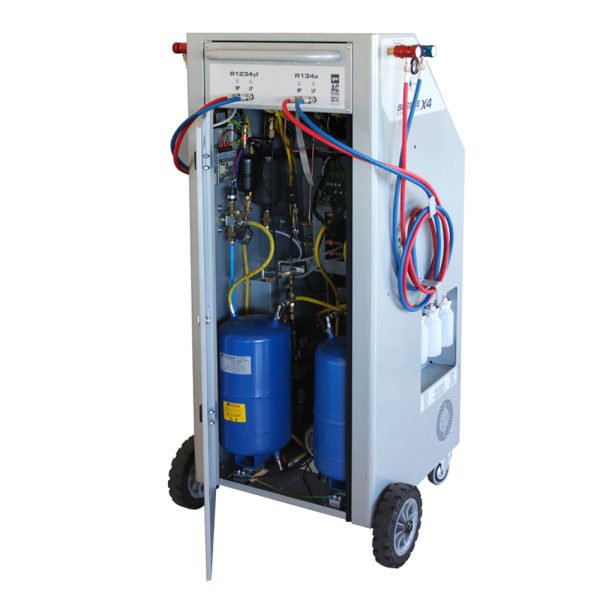

No internal contamination between gases: two separate circuits with 4 pipes, 2 for R134 and 2 for R1234yf; 2 evaporators, 2 compressors, 2 condensers, 2 filters, 2 tanks

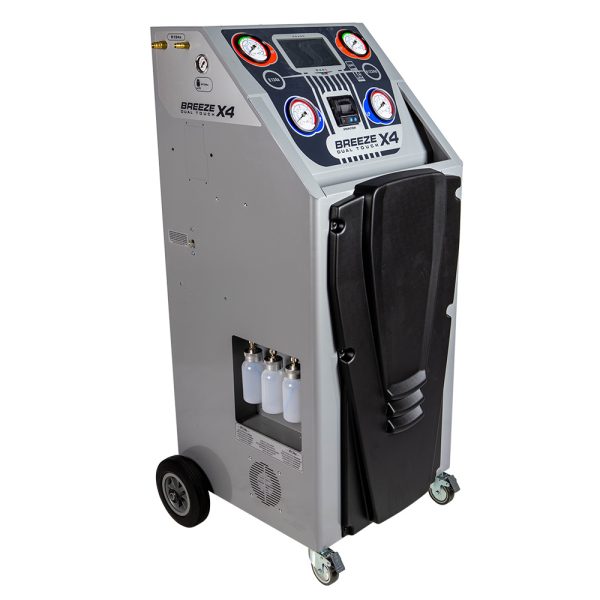

Separate circuits for oil treatment: 3 channels for R134a with scales + 3 channels for R1234yf with scales (standard, used, hybrid)
Automatic circuit flushing at every oil change
Easy charging in all temperature conditions thanks to the BST system (by SPIN)
WSC (Winter-Summer-Compensation) function. Possibility of correcting the amount of gas loaded by operating with the +/- keys and HP/LP pressure control (B)
Integrated database updatable from USB port
Maximum recovery efficiency thanks to the standard 'MULTIPASS' function (C)
A/C system flushing kit with flooding - code 01.000.96 on request
Recirculating A/C system flushing kit type AUDI/VW - code 01.000.139 on request
Pressure test kit with nitrogen/hydrogen kit - code 01.000.326 on request
Refrigerant analyser R1234yf + R134a according to SAE and VDA standards integrated - code 01.000.263 on request (D)
WiFi module for data transmission/reception - code 01.000.328 on request*.
Standard printer
Balance block

(*) to be ordered at the same time as the A/C station

・

Technical Data

Touch Screen Display	7"
Tank capacity	2 x 10.5 kg
Vacuum pump	100 l/min
Compressor capacity	2 x 400 g/min
Standard/hybrid oil/additive injection with scale	2 x 3
