Motorcycle/scooter lift

Ponte sollevatore per moto e scooter con pompa idraulica a pedale 360/450 kg

Product code: N.A. Categories ,

main features

Motorbike and scooter lift with foot-operated hydraulic pump. This motorbike lift allows all maintenance operations on motorbikes to be carried out and is the ideal tool for replacing brake pads, coupons, changing sprockets or changing oil.

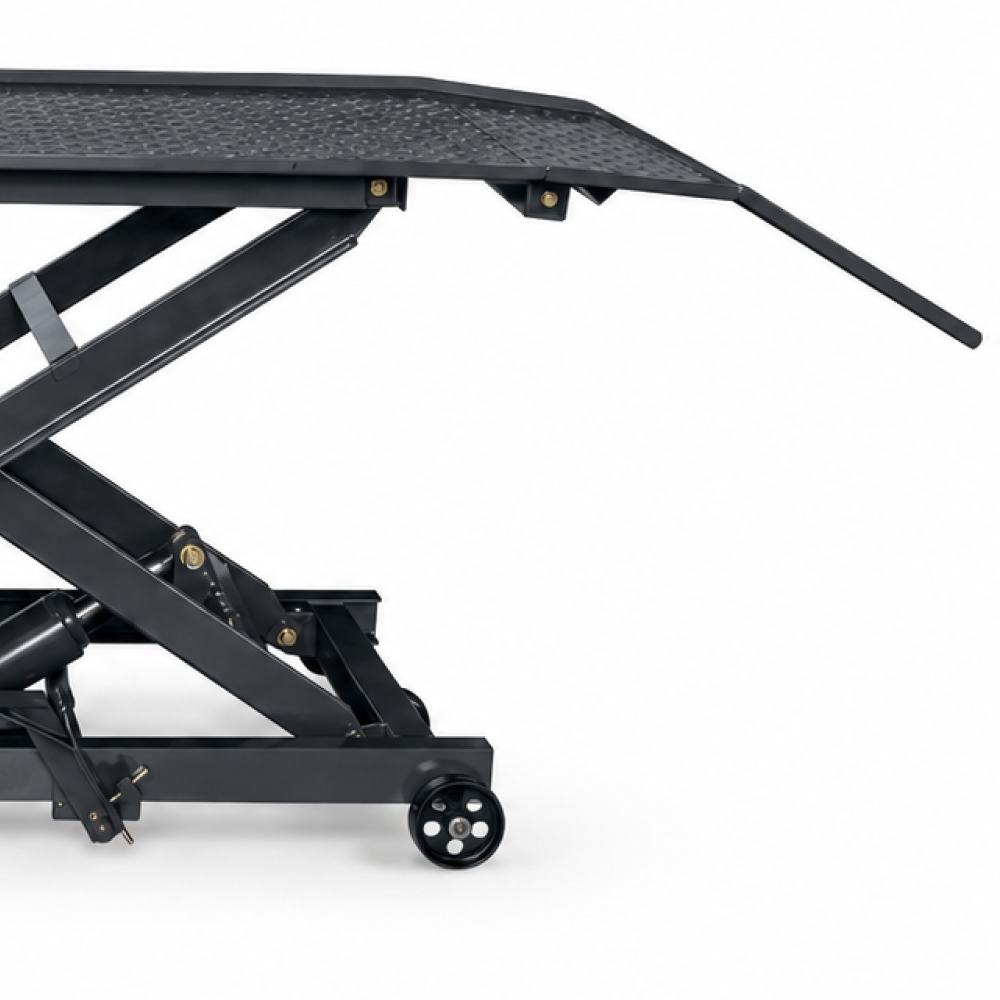

The lift is equipped with a foot pedal to lower/raise the motorbike via hydraulic drive with pantograph lifting technology.

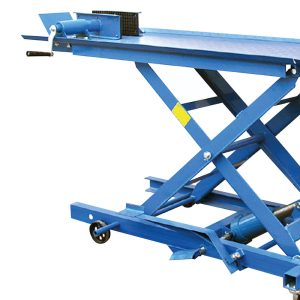

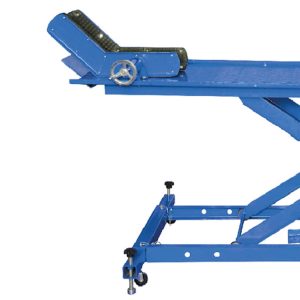

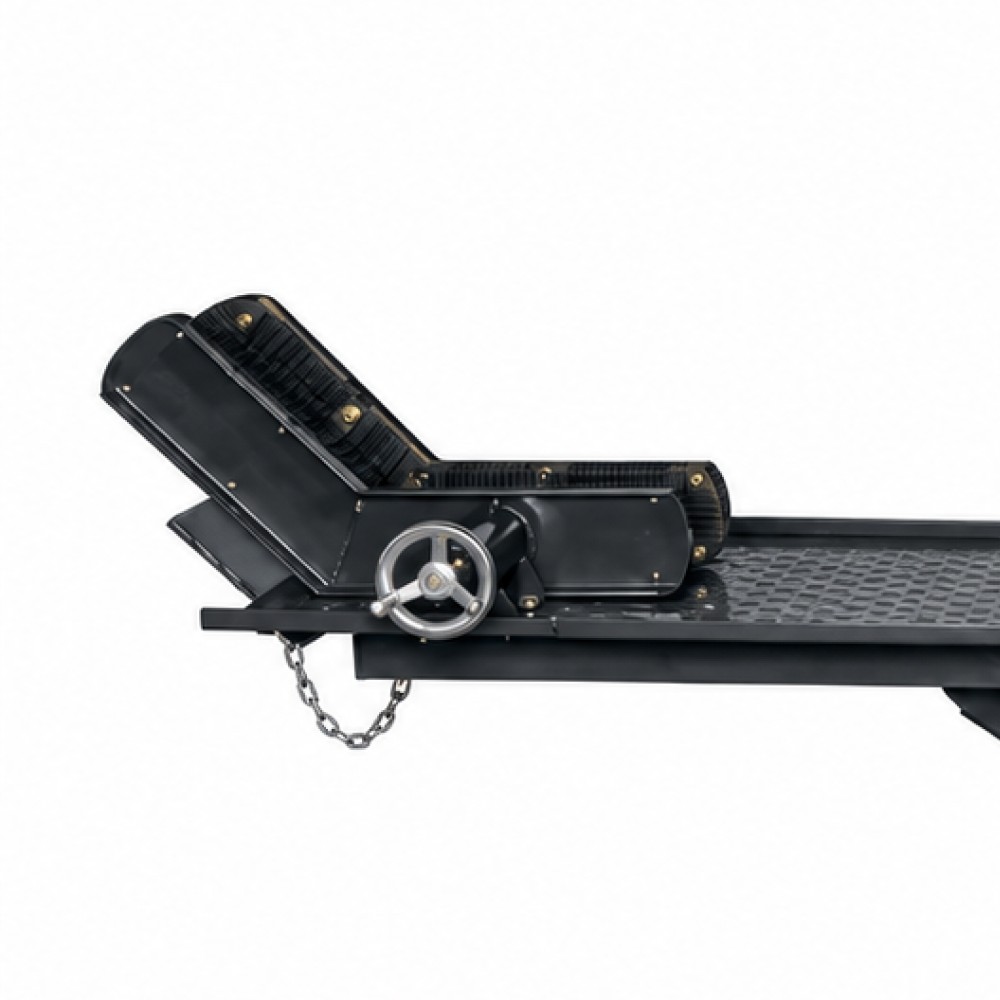

It features a robust steel construction with a non-slip knurled platform and a clamp with jaws for secure positioning of the vehicle. The equipment also includes a ramp. The lift is equipped with 2 fixed and 2 swivel wheels for easy movement within the garage or workshop.

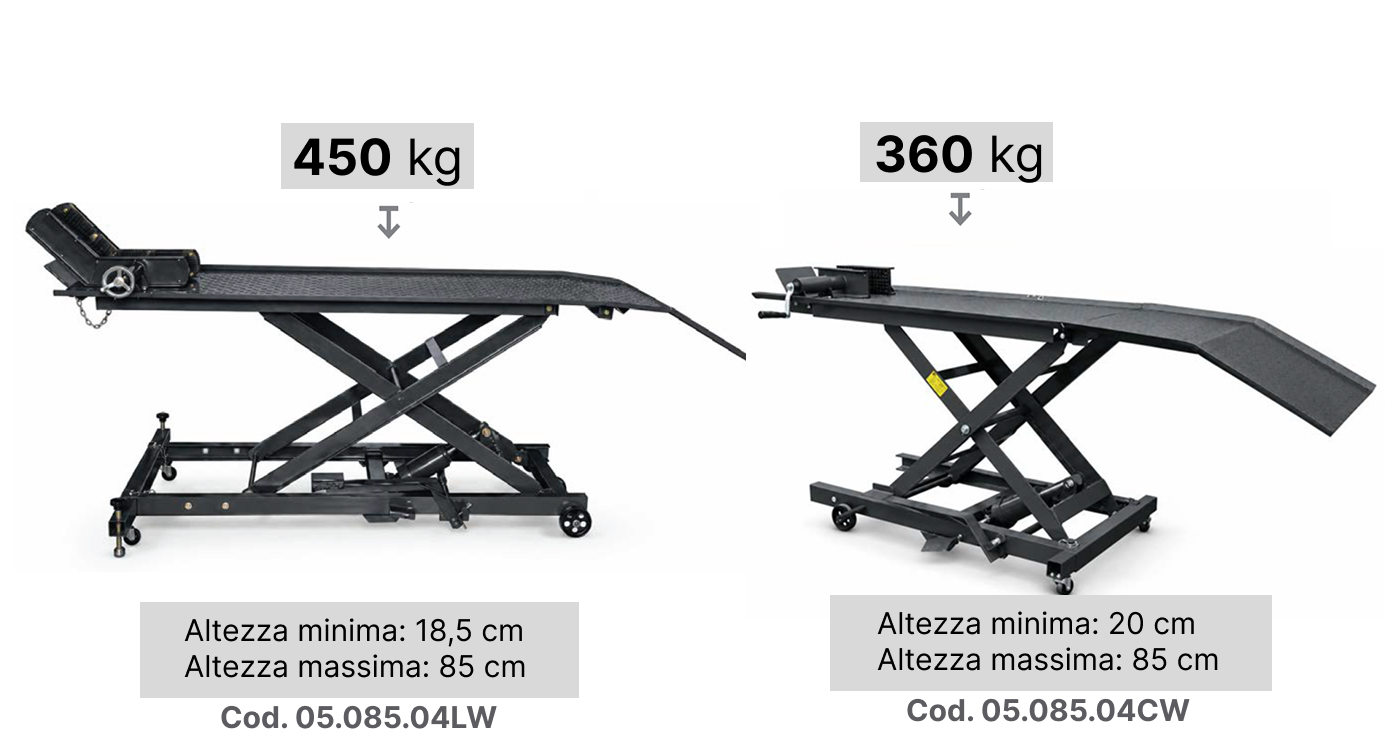

Available in two different versions:

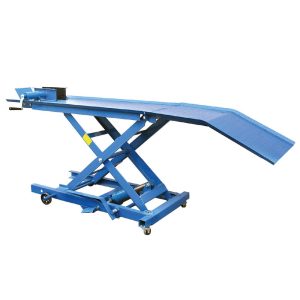

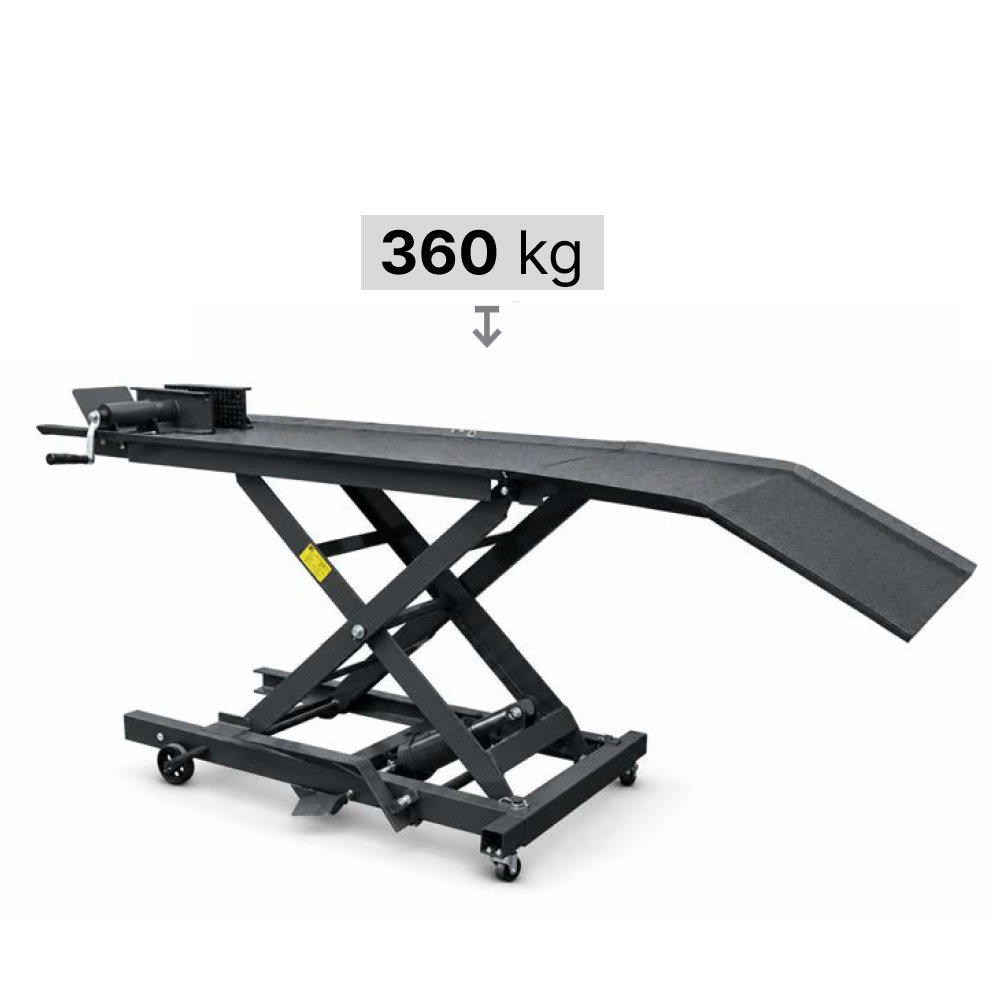

  • Load capacity 360 kg - cod. 05.085.04CW

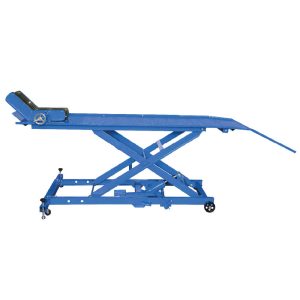

  • Load capacity 450 kg - cod. 05.085.04LW

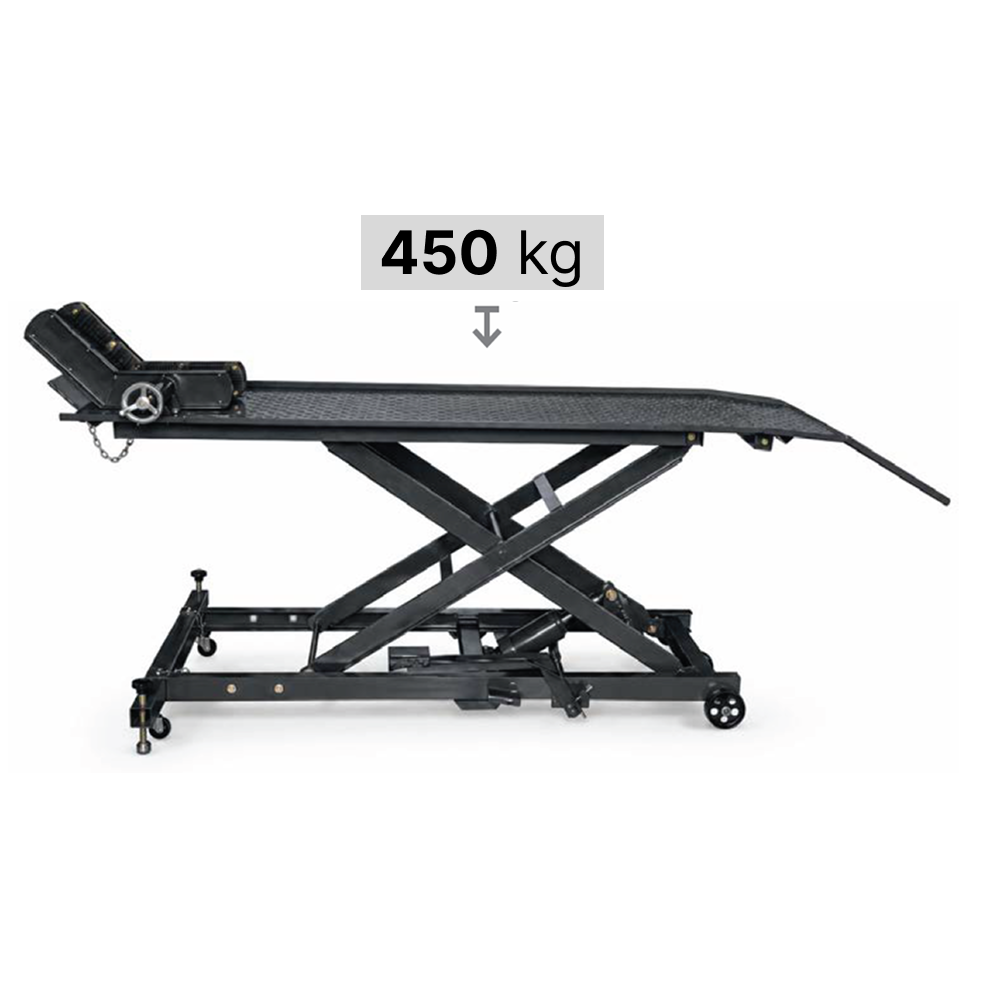

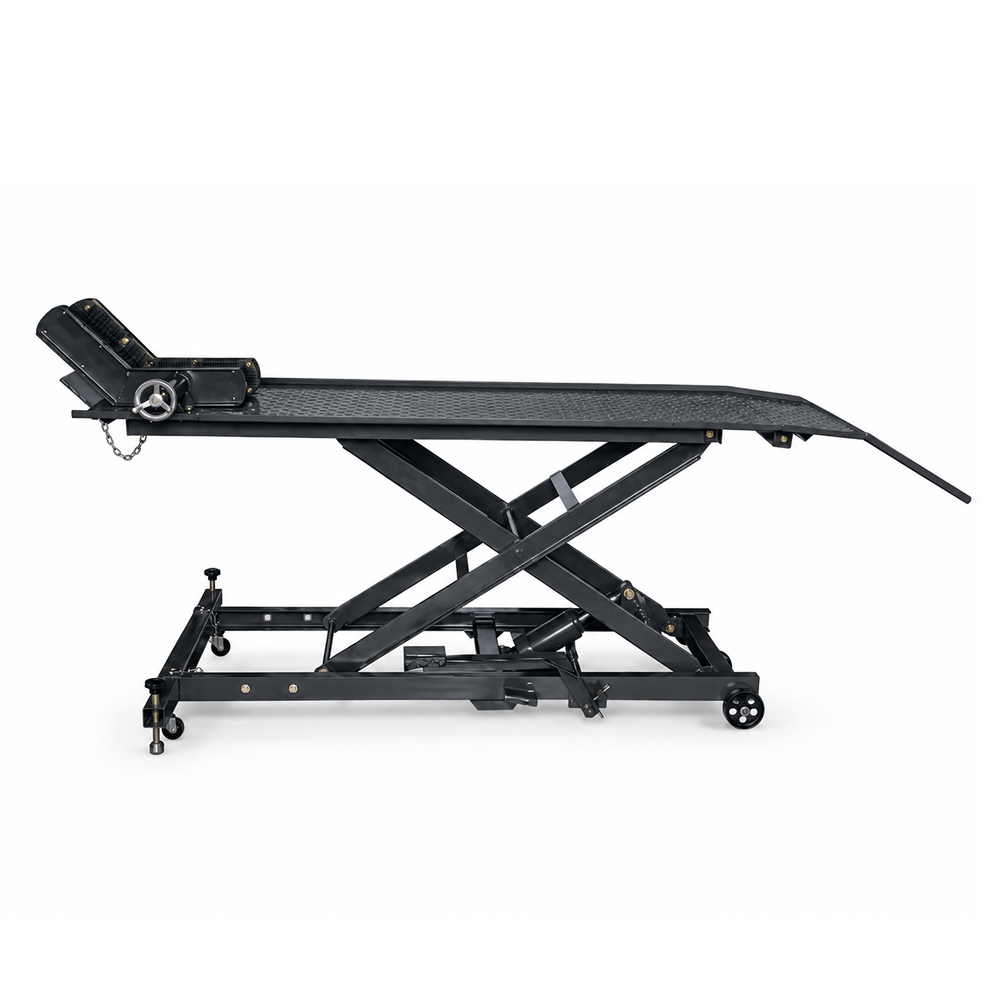

Specifiche tecniche – cod. 05.085.04LW:

  • Load capacity: 450 kg
  • Min. height: 18.5 cm
  • Max. height: 85 cm
  • Colore: Grey
  • Floor measurement with side ramp: 266 x 65 cm
  • Top size: 220 x 65 cm
  • Side ramp measurement: 60 x 65 cm
  • Wooden packaging, dim.: 224 x 70 x 21 cm
  • Gross weight: 167.8 kg
  • Net weight: 145.5 kg

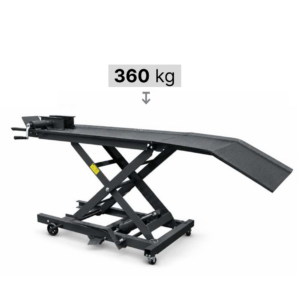

Specifiche tecniche – cod. 05.085.04CW:

  • Load capacity: 360 kg
  • Min. height: 20 cm
  • Max. height: 85 cm
  • Colore: Grey
  • Top size with side ramp: 220 x 49 cm
  • Top size: 135 x 49 cm
  • Side ramp measurement: 85 x 49 cm
  • Wooden packaging, dim.: 150 x 80 x 40 cm
  • Gross weight: 120 kg
  • Net weight: 107 kg
