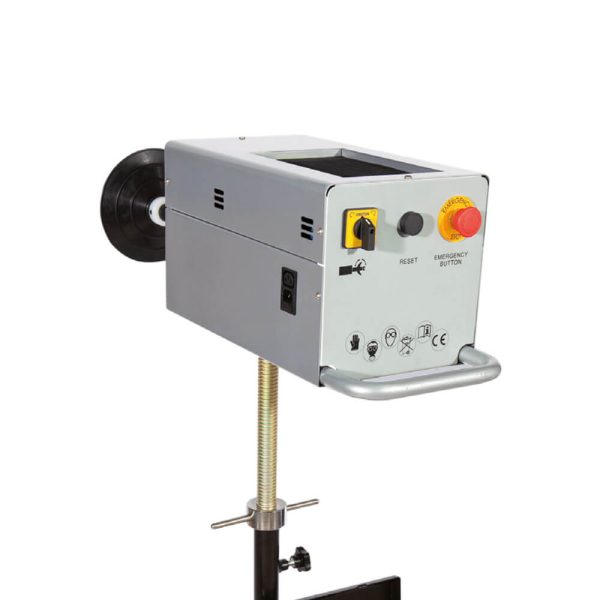

Brake disc grinding lathe
Brake disc grinding lathe, for European and Asian cars and commercial vehicles
Suitable for Cars
Suitable for Cars
Suitable for Trucks
Features
The kit includes 220V 50HZ disc lathe, movement unit and 13 accessories for operating on European and Asian cars and commercial vehicles.
Technical Specifications
- Maximum disc thickness: 39 mm
- Maximum cutting depth: 0.8 mm per cutting edge
- Working height: adjustable from 800 to 1200 mm
- Cutting speed: 8.5 mm/minute
- RPM: 98 rpm
- Max. disc diameter: 350 mm
Results of rectification
- Brake disc deformation: <20 μm
- Thickness variation: <20 μm
- Surface roughness: <1 μm
- Voltage: 220 V/50 Hz
- Amperage: 6.8 A
Kit contents
- Disc lathe 220V 50Hz (cod. 801000)
- Motion unit 220V 50Hz (cod. 802000)
- 13 accessories (see standard kit)
Standard kit included
- Universal guide with thread (set) (Code 803001) (A)
- Universal guide without thread (set) (Code 803002) (B)
- Extension bracket for 803001 (Code 803011) (C)
- Extension bracket for 803002 (Code 803002) (D)
- Large movement adapter (Code 803017) (E)
- Tip (three-sided), No. 2 pcs. (Code 803013) (F)
- Small mounting plates (808001) (G)
- Brush (cod. 803104) (H)
- M6 hexagonal spanner (Code 803102) (I)
- Small anti-noise rubber for discs (Code 803111) (L)
- Oil (cod. 803105) (M)
- S-hooks, no. 2 pcs. (Code 803106) (N)
- Shims, no. 7 pcs. (cod. 803103) (O)
- Special bracket for Opel (Code 02.003.06) (P)
- Special bracket for Toyota/Nissan (20.003.07) (Q)
- Bolt kit for VW Golf/Ford Focus (Code 02.003.08) (R)
